Products Details

Heavy Duty Door closer 7033AW

  • Size: 206MM(L)×68MM(H)×44.5MM(W)
  • Footprint: 188MM×19MM
  • Power: En3# En4# optional
  • Door Weight: 40-65KG 60KG~85KG
  • Door Width: ≤950MM ≤1050MM
  • Hold open optional
  • Meet CE require
Size:206MM(L)×68MM(H)×44.5MM(W)
Footprint:188MM×19MM
Power:En3# En4# optional
Door Weight:40-65KG 60KG~85KG
Door Width:≤950MM ≤1050MM
Hold open optional
Meet CE require

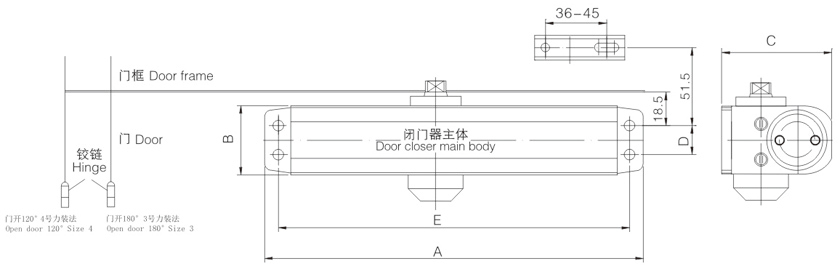

 Main parameter

Item

Overall dimension(mm)
Installation dimension(mm)
Applicable door

weight(Kg)

Applicable door

width(mm)

Function

Please install according

to the instruction

A

B

C

D

E

7033AW

206

44.5

68

19

188

40~65

≤950

Latching/closing adjustable


7033AD

206

44.5

68

19

188

40~65

≤950

Latching/closing adjustable

Hold open

7034AW

206

44.5

68

19

188

60~85

≤1050

Latching/closing adjustable
