Products Details

Heavy Duty Door closer 5055AW

  • Size: 248MM(L)×72MM(H)×44.5MM(W)
  • Footprint: 230MM×19MM
  • Power: En5# En6# optional
  • Door Weight: 80KG~120KG 100KG~150KG
  • Door Width: ≤1200MM ≤1500MM
  • Backcheck optional
  • Meet CE require
Size:248MM(L)×72MM(H)×44.5MM(W)
Footprint:230MM×19MM
Power:En5# En6# optional
Door Weight:80KG~120KG 100KG~150KG
Door Width:≤1200MM ≤1500MM
Backcheck optional
Meet CE require

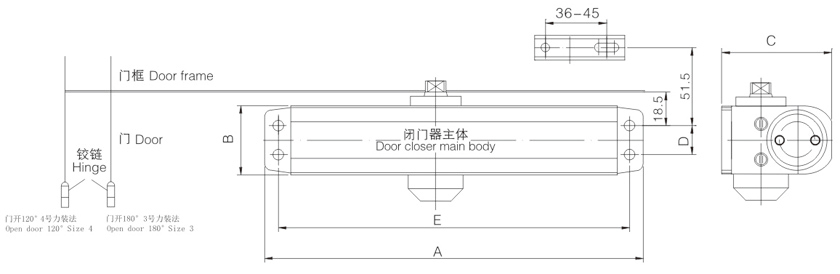

Main parameter

Item

Overall dimension(mm)
Installation dimension(mm)
Applicable door

weight(Kg)

Applicable door

width(mm)

Function

Please install according

to the instruction

A

B

C

D

E

5055AW

248

44.5

72

19

230

80~120

≤1200

Latching/closing adjustable

Spring power

Adjusting optional

5055BW

248

44.5

72

19

230

80~120

≤1200

Latching/closing adjustable

Backcheck adjustable

5056AW

248

44.5

72

19

230

100~150

≤1500

Latching/closing adjustable

5056BW

248

44.5

72

19

230

100~150

≤1500

Latching/closing adjustable

Backcheck adjustable
