Description

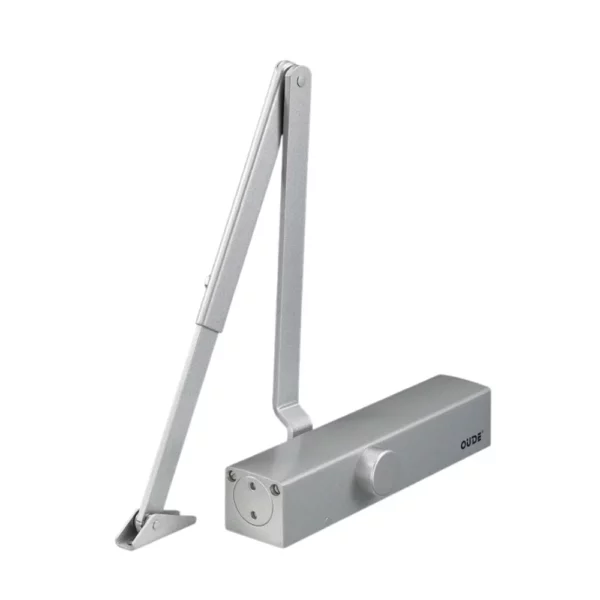

8033AW
Size：230MM（L）×45MM（H）×49MM(W)
Footprint:178MM×19MM(Install Panel)
Power:En2#/En3#/EN4
Door Weight:25KG-45KG/40KG~65KG/60-85KG
Door Width:≤900MM/≤950MM/≤1050MM
Backcheck optional
|
Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|

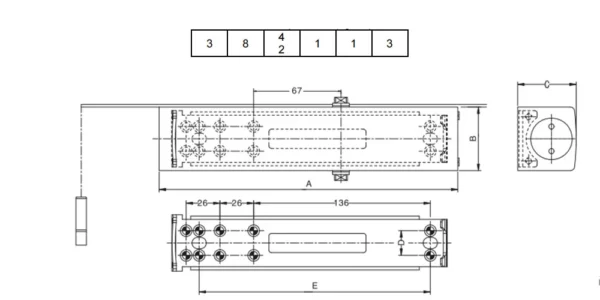

Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 8032AW | 230 | 49 | 45.1 | 19 | 178 | 25~45 | ≤850 | Two-stage speed regulation | |
| 8033AW | 230 | 49 | 45.1 | 19 | 178 | 40~65 | ≤950 | Two-stage speed regulation | |
| 8033BW | 230 | 49 | 45.1 | 19 | 178 | 40~65 | ≤950 | Dual-stage speed regulation/buffer function | |
| 8033CW | 230 | 49 | 45.1 | 19 | 178 | 40~65 | ≤950 | Dual-stage speed regulation/buffer + delay function | |
