Description

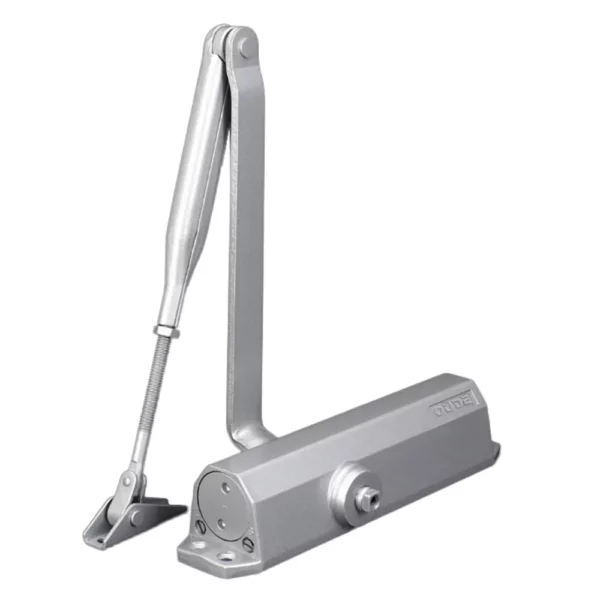

D3023BW
Size：220MM（L）×52MM（H）×45MM(W)
Footprint:202MM×19MM
Power:En2/3/4 selectable
Door Weight:25-85KG
Door Width:900MM~1050MM
Backcheck optional
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover
| Main parameter | |||||||||||

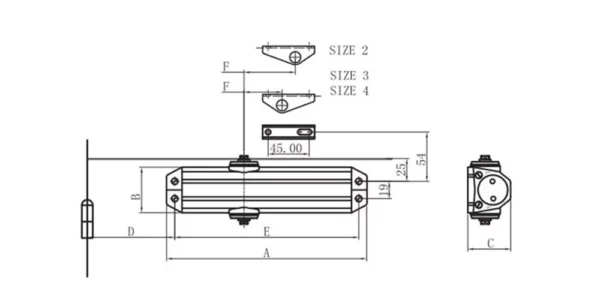

| Item | Closer Size | Overall dimension（mm） | Installation dimension（mm） | Applicable door weight(Kg) | Applicable door width(mm) | Function | Please install according to the instruction | ||||
| A | B | C | D | E | F | ||||||
| D3023AW | 3# | 220 | 50 | 47 | 96 | 202 | 59 | ≤60 | ≤950 | Closing/latching speed adjustable Backcheck adjustable (EN2/3/4 by template) | |
| D3023BW | 3# | 220 | 50 | 47 | 96 | 202 | 59 | ≤60 | ≤950 | Closing/latching speed adjustable Backcheck adjustable (EN2/3/4 by template) | |
