Description

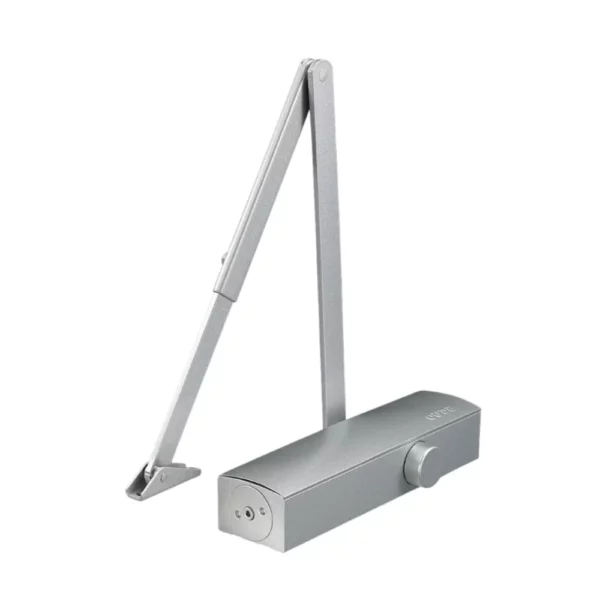

802-5CW
Size：226MM（L）×43MM（H）×60MM(W)
Footprint:44MM×135MM×25MM
Power:En2#~En5#
Door Weight:25-100KG
Door Width:900MM~1200MM
Function:Backcheck/Delay action
Body Material:Alluminum diacasted
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover

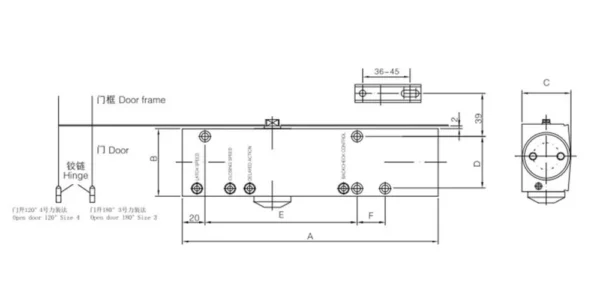

| Main parameter | ||||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door weight(Kg) | Applicable door width(mm) | Function | Please install according to the instruction | ||||
| A | B | C | D | E | F | |||||
| 802-5BW | 227 | 60 | 43.5 | 44 | 135 | 25 | 25～120 | ≤1200 | Adjustable closing and locking force/buffer function | With strength adjustment function |
| 802-5CW | 227 | 60 | 43.5 | 44 | 135 | 25 | 25～120 | ≤1200 | Adjustable closing and locking force/buffering and delay functions | |
