Description
Product Overview
The 5023AWY is a versatile, surface-mounted door closer engineered for medium-to-heavy-duty applications. Designed for interior/exterior doors weighing 25–85 kg and widths up to 1050 mm, it balances robust performance with adaptable installation.
Key Features
✅ Adaptable Power Adjustment
- Door Weight Capacity: 25–85 kg
- Max Door Width: 1050 mm
- Power Grade: EN2/3/4 selectable (EN 1154 certified for precision control).
✅ Streamlined, Heavy-Duty Design
- Compact Dimensions: 182 mm (L) × 61 mm (H) × 41.5 mm (W)
- Footprint: 162–166 mm × 19 mm
- Rail-guided mechanism for seamless operation and low visibility.
✅ Durable & Custom-Built
- Hold-Open Function: Optional for flexible use.
- Finish Options: Pantone-matched paint colors, SSS/SNP arm, PA bracket, and cover.
- Corrosion-resistant construction for longevity.
Technical Specifications
| Parameter | Detail |
| Dimensions | 182 × 61 × 41.5 mm (L×H×W) |
| Footprint | 162–166 mm × 19 mm |
| Door Weight | 25–85 kg |
| Door Width | 900–1050 mm |
| Certifications | EN 1154, CE, ISO 9001 |
| Warranty | 5-year limited warranty |
Why Choose OUDE?
✔️ Engineering Excellence – 20+ years of innovation in door hardware.
✔️ Global Standards – Compliant with EN, CE, and ISO certifications.
✔️ Tailored Solutions – Customize finishes, power grades, and functions to meet project requirements.

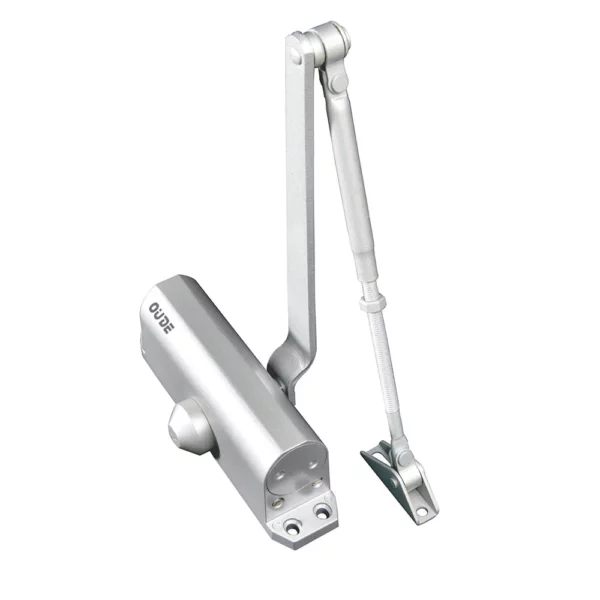

Door Closer 5023AWY
Size：182MM（L）×61MM（H）×41.5MM(W)
Footprint:162~166MM×19MM
Power:En2/3/4 selectable
Door Weight:25-85KG
Door Width:900MM~1050MM
Hold open optional
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover
|

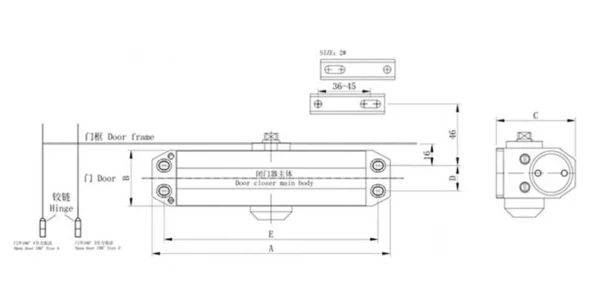

Main parameter |
||||||||||
| Item |
Overall dimension
（mm） |
Installation dimension
（mm） |
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
||||
| A | B | C | D | E | ||||||
| 5023AWY | 182 | 41.5 | 60.5 | 19 | 162～166 | 20~85 | ≤1050 | Two-stage speed regulation/overload protection
(EN3/4/5 by template) |
||
