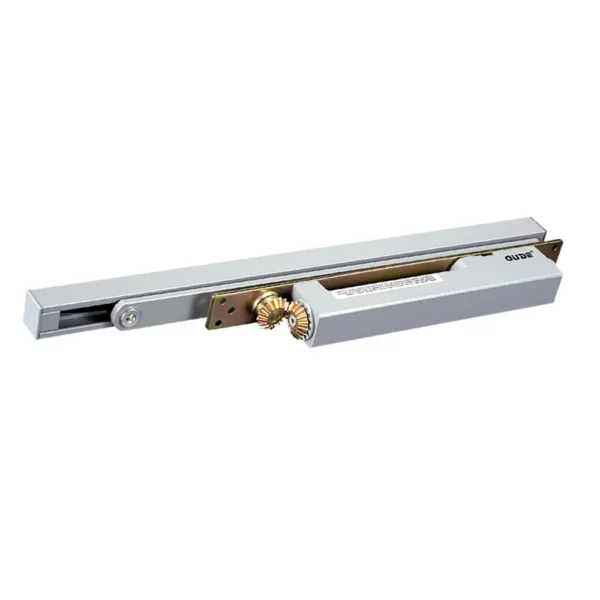

Description
Concealed install
Size：242MM（L）×42MM（H）×32MM(W)
Install size:320MM×32MM
Power:En2#~En4# adj by spring
Door Weight:25-85KG
Door Width:≤1050MM
UL certified 3hrs R26448
|

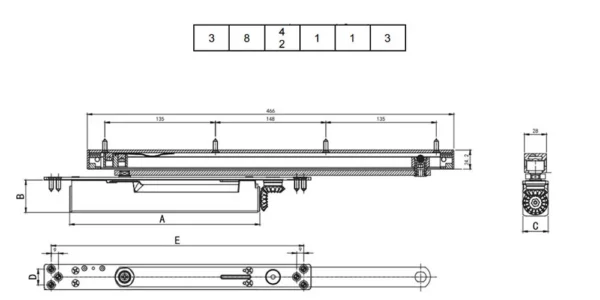

Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the |
|||
| A | B | C | D | E | |||||
|
DC962-4AWH |
241 |
42 |
32 |
20 |
320 |
45~85 |
≤1100 |
Cam structure transmission/two-stage speed regulation Adjustable door closing force/no distinction between left and right hands |
Equipped with slide rail rocker arm Pulley spring positioning |
