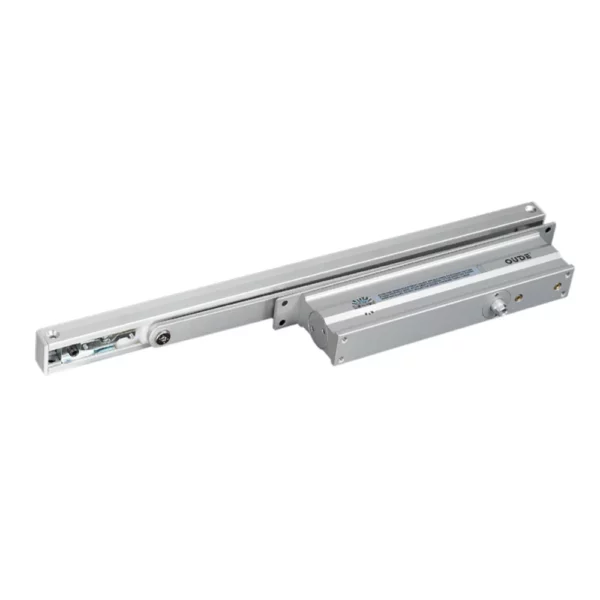

Door Closer 2123AWH

Size：230MM（L）×57MM（H）×32MM(W)
Footprint:260MM×20MM
Power:En3/EN4
Door Weight:40-65KG/60-85KG
Door Width:≤950MM/1050MM

Available Colors:

Description

Concealed install

Size：230MM（L）×57MM（H）×32MM(W)
Footprint:260MM×20MM
Power:En3/EN4
Door Weight:40-65KG/60-85KG
Door Width:≤950MM/1050MM

Main parameter

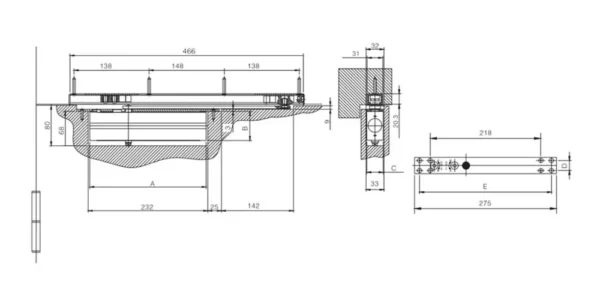

Item	Overall dimension（mm）			Installation dimension（mm）		Applicable door weight(Kg)	Applicable door width(mm)	Function	Please install according to the instruction
Item	A	B	C	D	E	Applicable door weight(Kg)	Applicable door width(mm)	Function	Please install according to the instruction
2122AWH	230	57	32	20	260	25~45	≤950	Two-stage speed regulation	With slide rail rocker arm With door stop function (aluminum profile body)
2123AWH	230	57	32	20	260	40~65	≤950	Two-stage speed regulation
2124AWH	230	57	32	20	260	60~85	≤1050	Two-stage speed regulation
