Commercial door closer 8023AW

  • Size: 178MM（L）×38MM（H）×50MM(W)
  • Footprint:38MM×86MM×60MM
  • Power: En2#~En4# (Install size Changing)
  • Door Weight: 25-85KG
  • Door Width: 900MM~1050MM
  • Backcheck optional
  • CE Certificate
Size：178MM（L）×38MM（H）×50MM(W)
Footprint:38MM×86MM×60MM
Power:En2#~En4# (Install size Changing)
Door Weight:25-85KG
Door Width:900MM~1050MM
Backcheck optional
CE Certificate

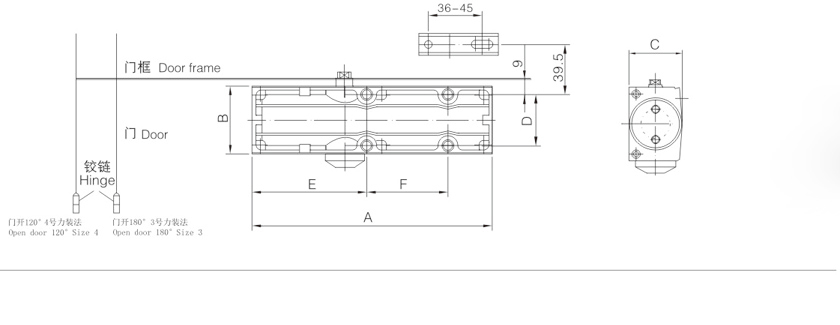

 Main parameter

Item

Overall dimension

（mm）

Installation dimension（mm）
Applicable door

weight(Kg)

Applicable door

width(mm)

Function

Please install according

to the instruction

A

B

C

D

E

F

8022AW

178

50

38

38

86

60

25~45

≤900

Latching/closing adjustable


8023AW

178

50

38

38

86

60

45~65

≤950

Latching/closing adjustable

8023BW

178

50

38

38

86

60

45~65

≤950

Latching/closing adjustable

Backcheck adjustable

8023AD

178

50

38

38

86

60

45~65

≤950

Latching/closing adjustable

Hold open
