Products Details

Cam action series D1103AW

外形尺寸:186MM(L)×36MM(W)×68MM(H)
力度:  En3  凸轮结构
门重:40-85kgs
门宽:≤950MM

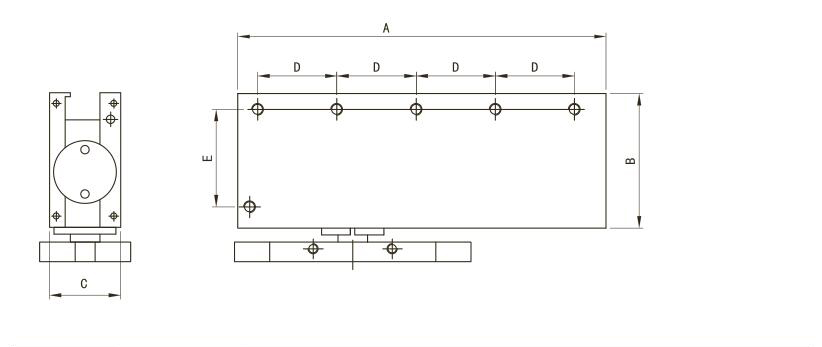

Main parameter

Item

Overall

dimension(mm)

Installation

dimension(mm)

Applicable door

weight(Kg)

Applicable door

width(mm)

Function

Please install according

to the instruction

A

B

C

D

E

D1103AW

186

68

36

40

49.3

45~65

≤950

Latching/closing adjustable

Non-handed install

Use for glass doors
