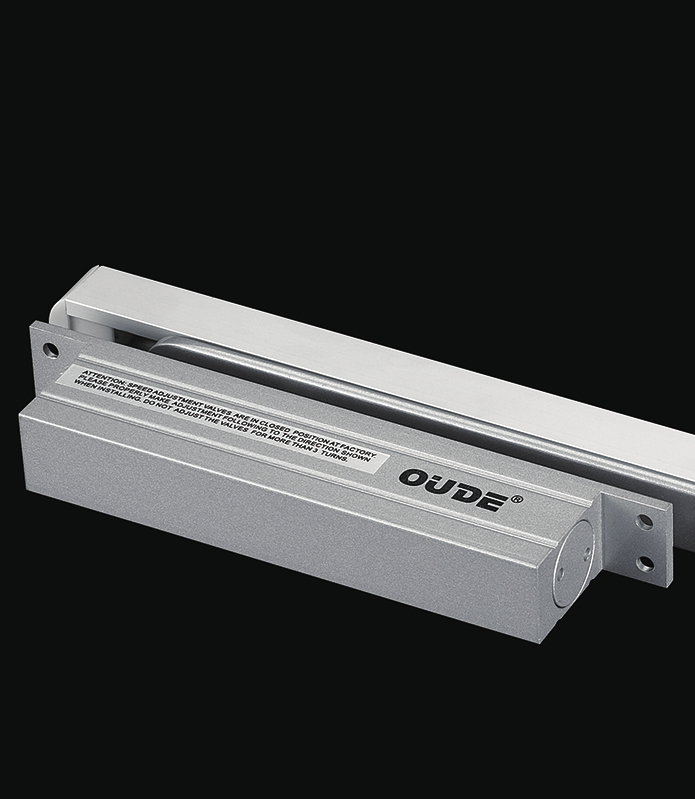

Size：198MM（L)×26MM(W)×41MM（H）
Profile size:160MM（L)×27MM×42MM（H）
Power: En1
Door Weight:15-25kgs
Door Width:≤750MM
Handed install
Single speed adjust
Explore our 1000 Series Door Closers, engineered for reliable performance across various applications. This series features three models:
Door Closer 1133BW (20-85KG, up to 1050MM wide), Door Closer 1143AWH (40-65KG, 950MM wide), and Door Closer 112-5CW (40-120KG, 900-1200MM wide).br/>
Each model offers adjustable power settings and a compact design, making them ideal for both residential and commercial use.
|

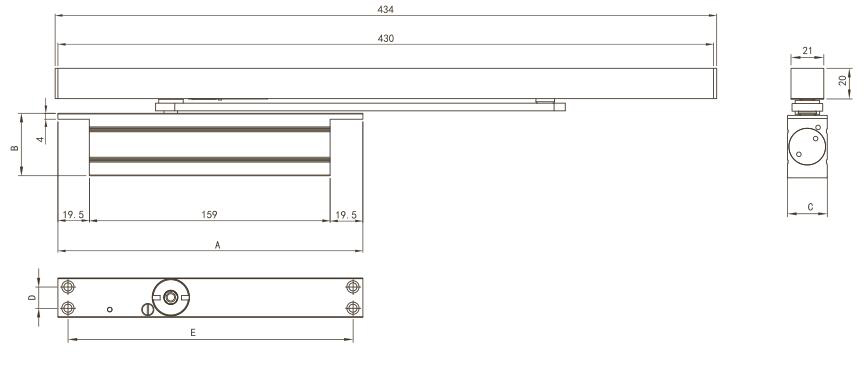

Main parameter |
|||||||||
|
Item |
Overall dimension（mm） |
Installation dimension（mm） |
Applicable door weight(Kg) |
Applicable door width(mm) |
Function |
Please install according to the instruction |
|||
|
A |
B |
C |
D |
E |
|||||
|
C2101AWH |
198 |
41 |
26 |
14 |
187 |
≤25 |
≤750 |
Use for windows bathroom doors Single speed range adjusting |
Sliding channel install |
