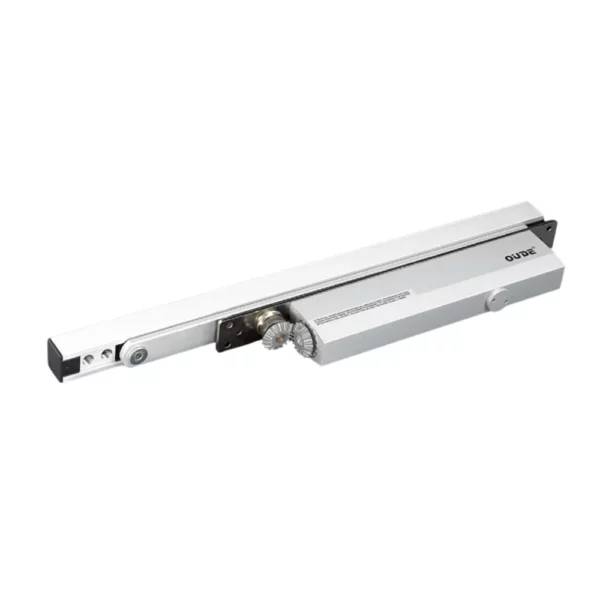

Description
Concealed install
Size：242MM（L）×57MM（H）×32MM(W)
Install size:320MM×32MM
PowerEn2#~En4#
Door Weight:25-85KG
Door Width:≤1050MM
|
Main parameter |
|||||||||
| Item |

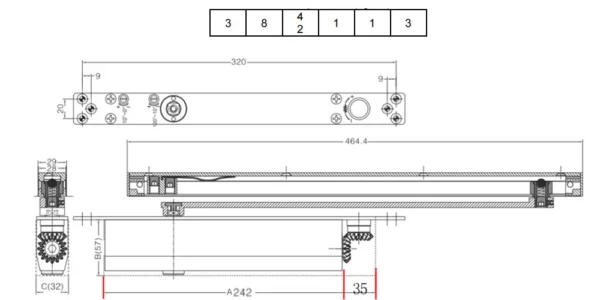

Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the |
|||
| A | B | C | D | E | |||||
|
962-4AW |
242 |
57 |
32 |
320 |
20 |
20~80 |
≤1100 |
Cam structure transmission, two-stage speed regulation, door closing force adjustable, no matter left or right hand | Equipped with slide rail rocker arm, optional positioning (aluminum profile body) |
