Description

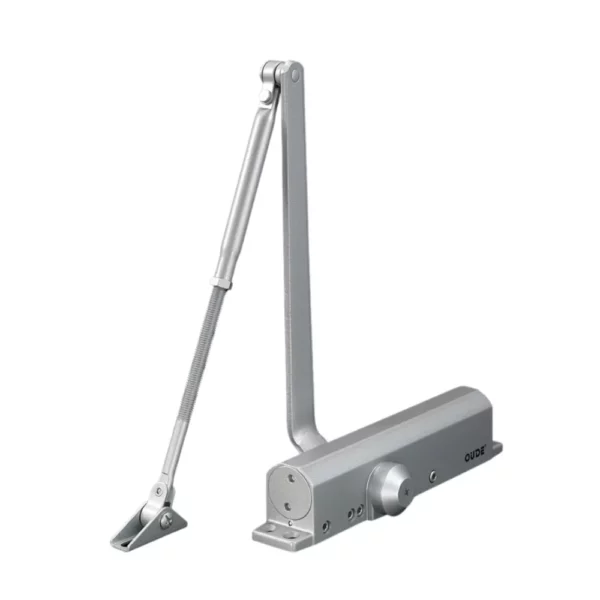

902-4CW
Size：248MM（L）×52MM（H）×58MM(W)
Footprint:230MM×19MM
Power:En2#~En4#
Door Weight:25-85KG
Door Width:≤1050MM
Function:Backcheck/Delay action
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover
|

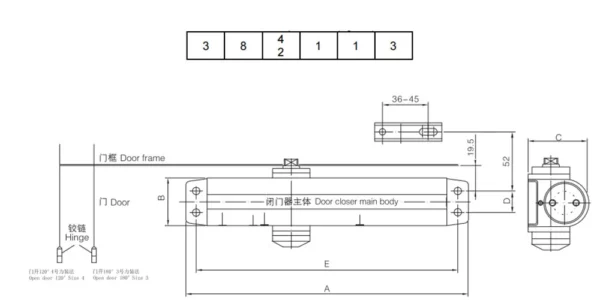

Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 902-4CW | 248 | 42 | 52 | 19 | 230 | 25~85 | ≤1050 | Adjustable closing/locking force/buffer and delay functions | With strength adjustment function |
| 903-6CW | 297 | 47 | 57 | 19 | 280 | 60~150 | ≤1500 | Adjustable closing/locking force/buffer and delay functions | |
