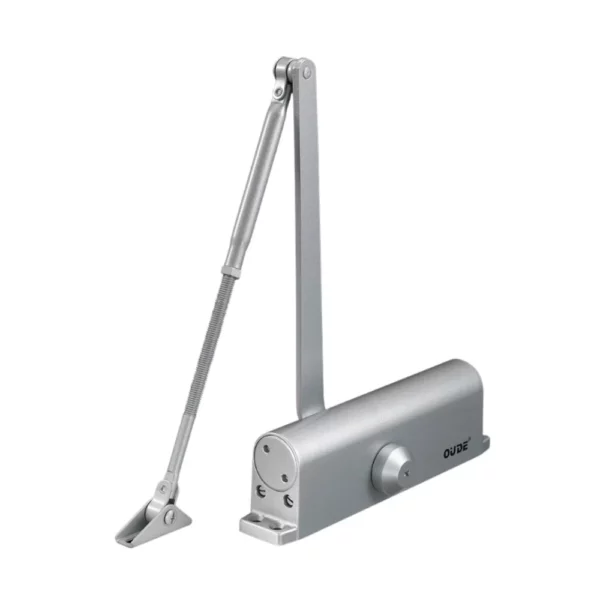

Description
Size:248MM（L）×72MM（H）×44.5MM(W)
Footprint:230MM×19MM
Power:En5#
Door Weight:80KG~120KG
Door Width:≤1200MM
|

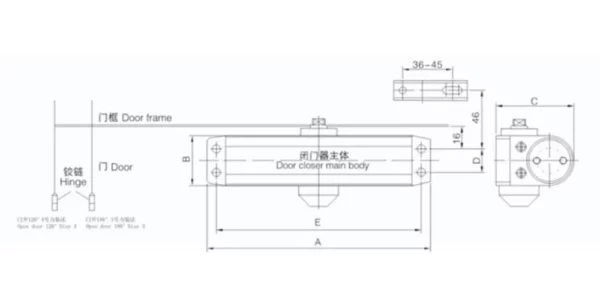

Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 7022AW | 180 | 41.5 | 62.5 | 19 | 165 | 24~45 | ≤900 |
Latching/closing adjustable
|
|
| 7022AD | 180 | 41.5 | 62.5 | 19 | 165 | 24~45 | ≤900 |
Latching/closing adjustable
Hold open |
|
| 7023AW | 180 | 41.5 | 62.5 | 19 | 165 | 40~65 | ≤950 |
Latching/closing adjustable
|
|
| 7023AD | 180 | 41.5 | 62.5 | 19 | 165 | 40~65 | ≤950 |
Latching/closing adjustable
Hold open |
|
