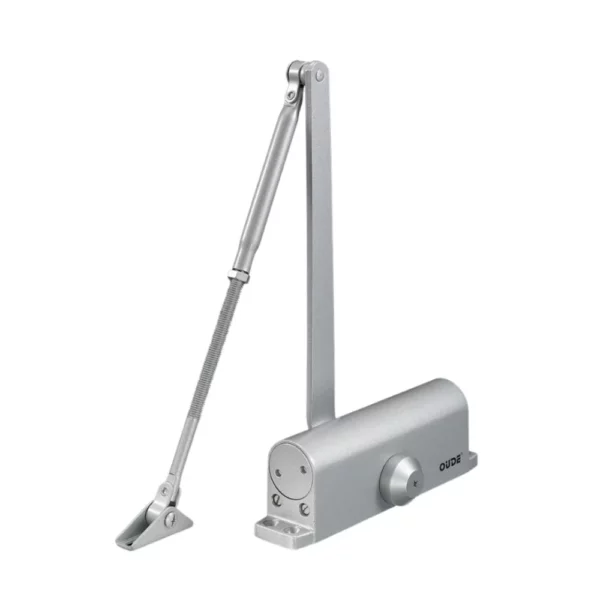

Description
Size:206MM（L）×68MM（H）×44.5MM(W)
Footprint:188MM×19MM
Power:En3#
Door Weight:40-65KG
Door Width:≤950MM
|

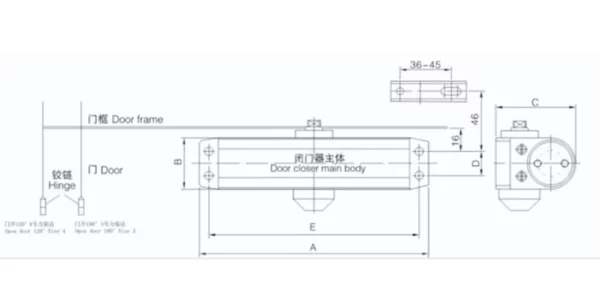

Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 7033AW | 206 | 44.5 | 68 | 19 | 188 | 40~65 | ≤950 |
Latching/closing adjustable
|
|
| 7033AD | 206 | 44.5 | 68 | 19 | 188 | 40~65 | ≤950 | Latching/closing adjustable
Hold open |
|
| 7034AW | 206 | 44.5 | 68 | 19 | 188 | 60~85 | ≤1050 | Latching/closing adjustable | |
