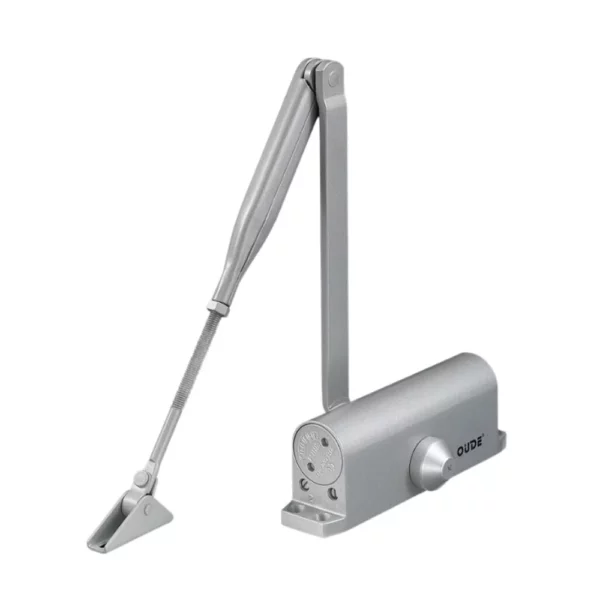

Description
Size:180MM（L）×62.5MM（H）×41.5MM(W)
Footprint:165MM×19MM
Power:En2#/En3#
Door Weight:40-65KG
Door Width:≤950MM

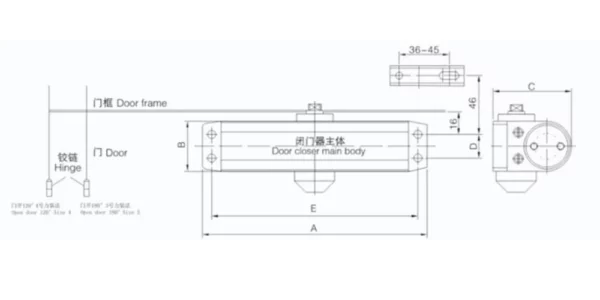

| Main parameter | |||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 7022AW | 180 | 41.5 | 62.5 | 19 | 165 | 20~45 | ≤900 |
Latching/closing adjustable
|
|
| 7022AD | 180 | 41.5 | 62.5 | 19 | 165 | 20~45 | ≤900 |
Latching/closing adjustable
Hold open |
|
| 7023AW | 180 | 41.5 | 62.5 | 19 | 165 | 40~65 | ≤950 |
Latching/closing adjustable
|
|
| 7023AD | 180 | 41.5 | 62.5 | 19 | 165 | 40~65 | ≤950 |
Latching/closing adjustable
Hold open |
|
