Description

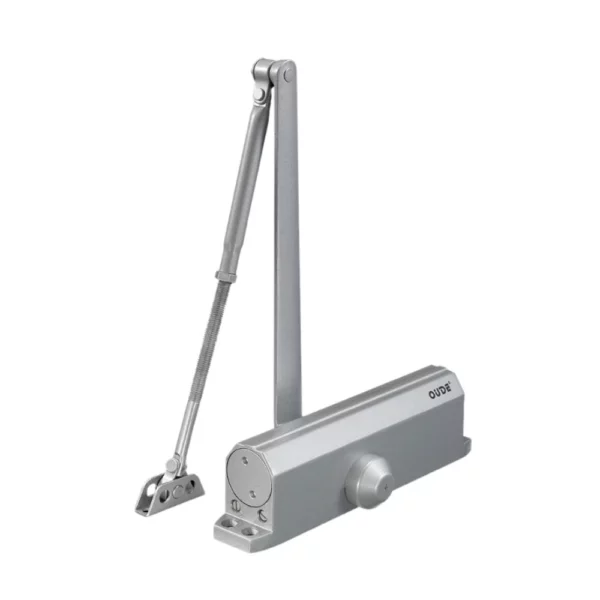

601-6BW
Size：248MM（L）×68.5MM（H）×45MM(W)
Footprint:230MM×19MM
Power:En1#~En6#
Door Weight:15KG-150KG
Door Width:≤1500MM
Backcheck/Delay action optional
ANSI156.4/UL Certified R26448
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover

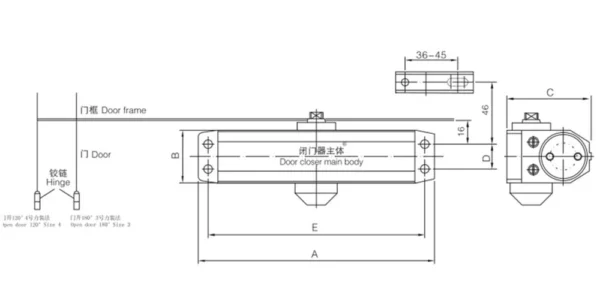

| Main parameter | |||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function | Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 601-6BW | 248 | 44.5 | 70 | 19 | 230 | 15~150 | ≤1500 | Latching/closing adjustable
Backcheck Spring power adjustable |
Power adjustable by spring |
