Description

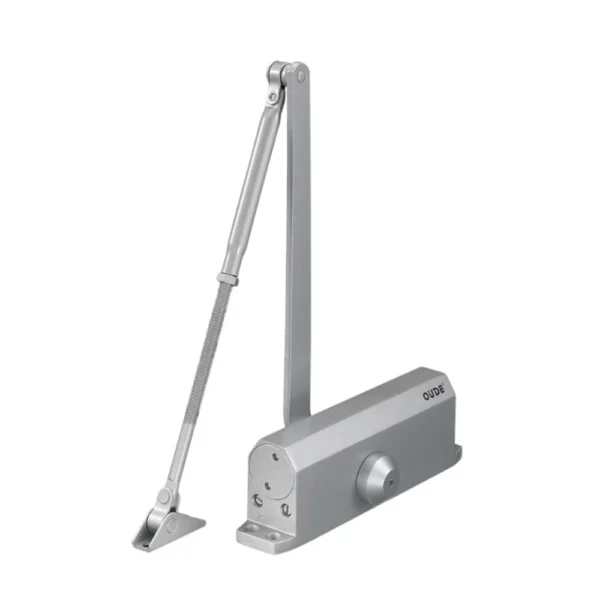

5044AW
Size：226MM（L）×72MM（H）×44.5MM(W)
Footprint:208MM×19MM
Power:En4/5
Door Weight:60KG~85KG 80~120KG
Door Width:≤1050MM ≤1200MM
Backcheck optional
Finish options: all panton color paiting finish

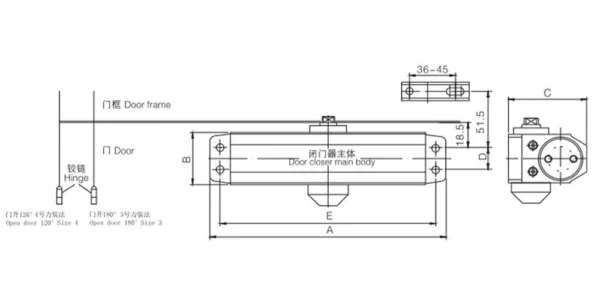

| Main parameter | |||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function |
Please install according to the instruction |
|||
| A | B | C | D | E | |||||
| 5044AW | 226 | 44.5 | 72 | 19 | 208 | 60~85 | ≤1050 | Latching/closing adjustable | |
| 5044BW | 226 | 44.5 | 72 | 19 | 208 | 60~85 | ≤1050 | Latching/closing adjustable
Backcheck adjustable |
|
| 5045AW | 226 | 44.5 | 72 | 19 | 208 | 80~120 | ≤1200 | Latching/closing adjustable | |
| 5045BW | 226 | 44.5 | 72 | 19 | 208 | 80~120 | ≤1200 | Latching/closing adjustable
Backcheck adjustable |
|
