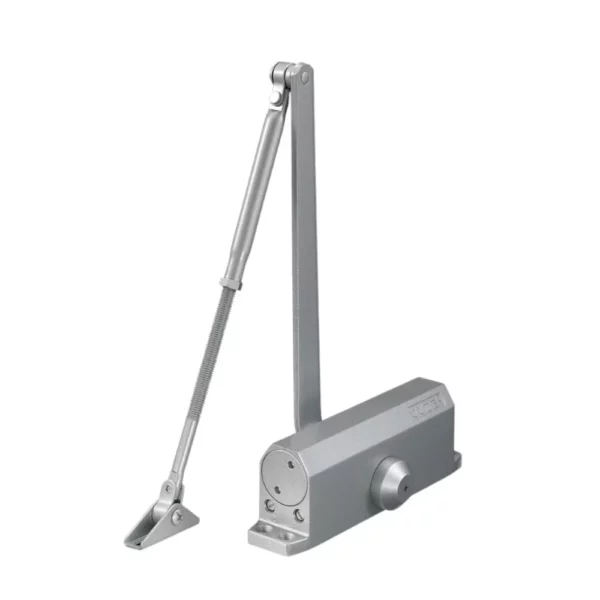

Description
5033AW
Size：206MM（L）×68MM（H）×44.5MM(W)
Footprint:188MM×19MM
Power:En3/4 selectable
Door Weight:40-65KG/60-85KG
Door Width:≤950MM≤1050MM
Hold open optional
Finish options: all panton color paiting finish
|

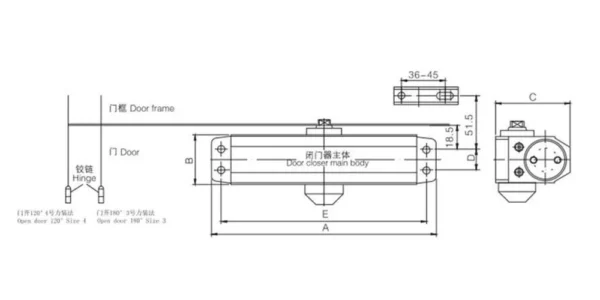

Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 5033AW | 206 | 44.5 | 68 | 19 | 188 | 40~65 | ≤950 |
Latching/closing adjustable
|
|
| 5033AD | 206 | 44.5 | 68 | 19 | 188 | 40~65 | ≤950 |
Latching/closing adjustable /Hold open
|
|
| 5034AW | 206 | 44.5 | 68 | 19 | 188 | 60~85 | ≤1050 |
Latching/closing adjustable
|
|
| 5034AD | 206 | 44.5 | 68 | 19 | 188 | 60~85 | ≤1050 |
Latching/closing adjustable /Hold open
|
|
| N5033AW | 206 | 41.5 | 62.5 | 19 | 188 | 60~85 | ≤1050 |
Latching/closing adjustable /Hold open
|
|
