Description

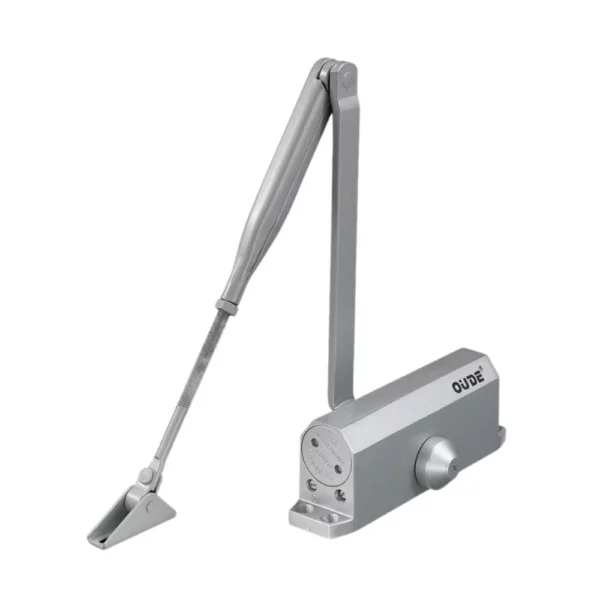

5023AW
Size：180MM（L）×63MM（H）×41.5MM(W)
Footprint:165MM×19MM
Power:En2/3/4 selectable
Door Weight:25-85KG
Door Width:900MM~1050MM
Hold open optional
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover

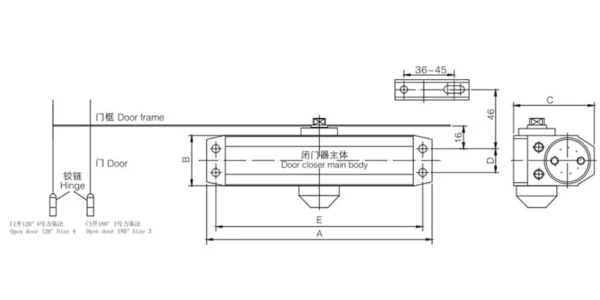

| Main parameter | |||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function |
Please install according to the instruction |
|||
| A | B | C | D | E | |||||
| 5022AW | 180 | 40 | 63 | 19 | 165 | 25~45 | ≤900 | Dual-stage speed regulation | |
| 5022AD | 180 | 40 | 63 | 19 | 165 | 25~45 | ≤900 | Dual-stage speed regulation/Door stop function | |
| 5023AW | 180 | 40 | 63 | 19 | 165 | 40~65 | ≤950 | Dual-stage speed regulation | |
| 5023AD | 180 | 40 | 63 | 19 | 165 | 40~65 | ≤950 | Dual-stage speed regulation/Door stop function | |
