Description

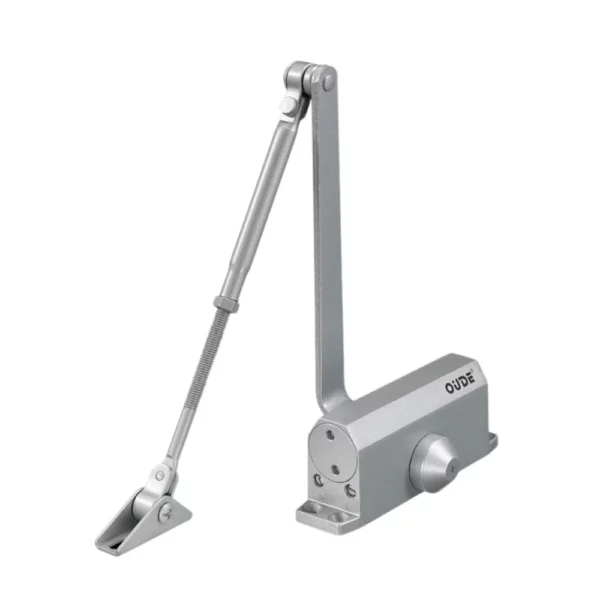

5012AW
Size：147MM（L）×56MM（H）×36.5MM(W)
Footprint:132MM×19MM
Power:En1/2/3 selectable
Door Weight:15~65KG
Door Width:≤950MM
Hold open optional
Finish options: all panton color paiting finish
|

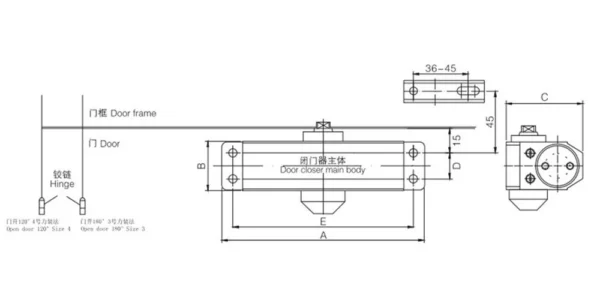

Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 5012AW | 148 | 36.5 | 56 | 19 | 132 | 25~45 | ≤900 |
Latching/closing adjustable
|
|
| 5012AD | 148 | 36.5 | 56 | 19 | 132 | 25~45 | ≤900 |
Latching/closing adjustable
Hold open |
|
| 5013AW | 148 | 36.5 | 56 | 19 | 132 | 40~65 | ≤950 |
Latching/closing adjustable
|
|
| 5013AD | 148 | 36.5 | 56 | 19 | 132 | 40~65 | ≤950 |
Latching/closing adjustable
Hold open |
|
