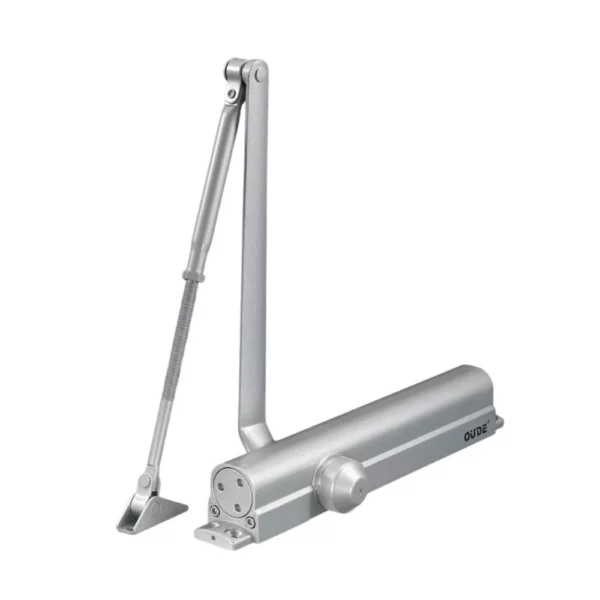

Door Closer 301-6BW

Size:325MM(L)×51.5MM(H)×47MM(W)
Footprint:305MM×19MM
Power:En1#~En6#
Door Weight:15-150KG
Door Width:≤1500MM
Backcheck/Delay Action optional

Available Colors:

Description

301-6BW
Size:325MM(L)×51.5MM(H)×47MM(W)
Footprint:305MM×19MM
Power:En1#~En6#
Door Weight:15-150KG
Door Width:≤1500MM
Backcheck/Delay Action optional

Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover

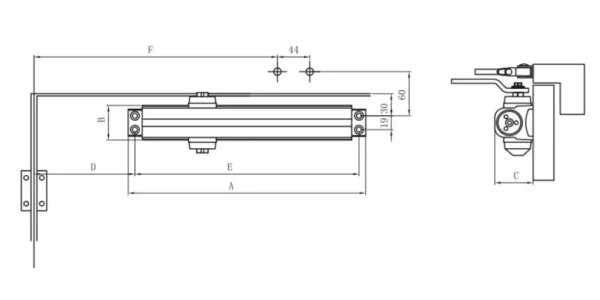

Door Closer BW Drawing

 Main parameter

ItemCloser

Size

Overall dimension

(mm)

Installation dimension

(mm)

Applicable door

weight(Kg)

Applicable door

width(mm)

Maximun

opening angle

Function
Please install according

to the instruction

ABCDEF
301-6BW1#-6#3234752191305331≤150≤1500100°Closing/latching speed adjustable

Backcheck Spring power adjustable


301-6BW1#-6#3234752152305292≤150≤1500130°
Closing/latching speed adjustable

Backcheck Spring power adjustable


301-6BW1#-6#3234752114305254≤150≤1500180°
Closing/latching speed adjustable

Backcheck Spring power adjustable
