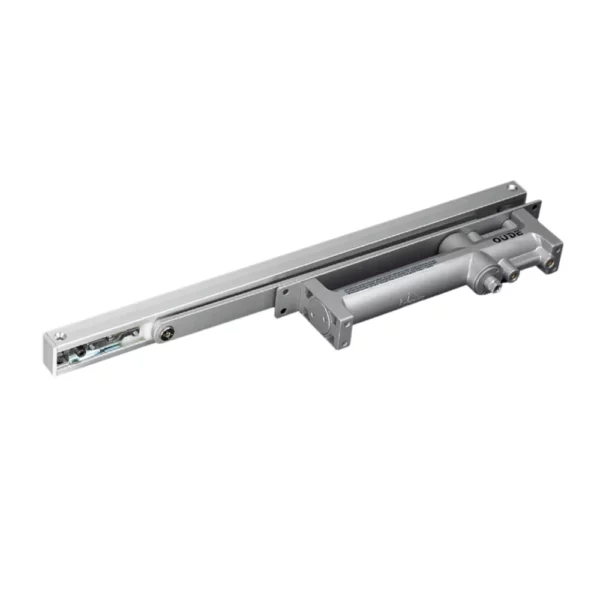

Description
Concealed install
2023AWH
Size：230MM（L）×57MM（H）×32MM(W)
Install size:260MM×20MM
Power:En3# EN4# optional
Door Weight:40-65KG 60-85KG
Door Width:≤950MM 1050MM
|
Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||

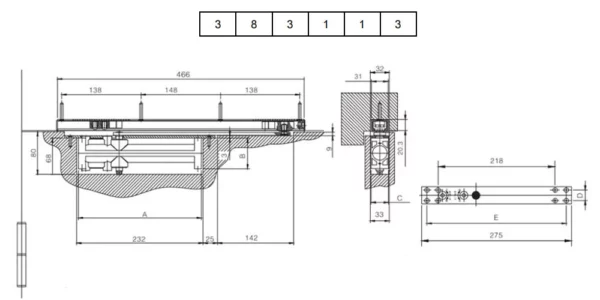

| A | B | C | D | E | |||||
| 2022AWH | 230 | 57 | 32 | 20 | 260 | 25~45 | ≤950 | Two-stage speed regulation | With slide rail rocker arm With door stop function |
| 2023AWH | 230 | 57 | 32 | 20 | 260 | 40~65 | ≤950 | Two-stage speed regulation | |
| 2024AWH | 230 | 57 | 32 | 20 | 260 | 60~85 | ≤1050 | Two-stage speed regulation | |
