Description

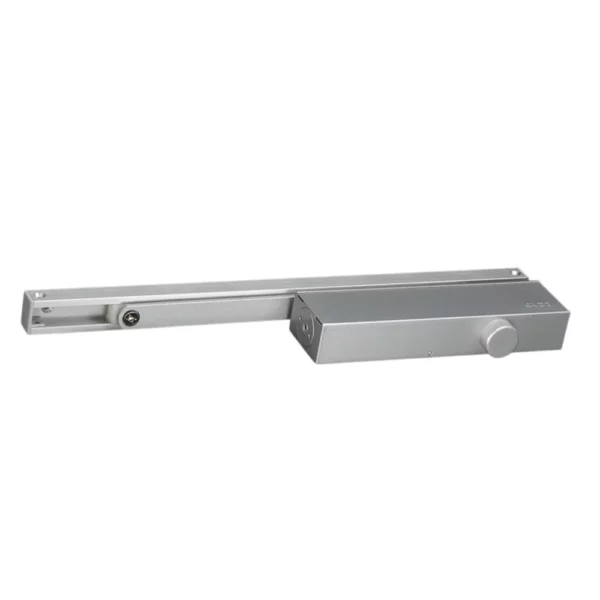

The 1143AWH is a high-performance, surface-mounted door closer designed for light-duty applications. Ideal for interior or exterior doors weighing 40–65 kg and widths up to 950 mm, it combines compact engineering with reliable functionality.
Key Features
✅ Optimized for Light-Duty Use
- Door Weight Capacity: 40–65 kg
- Max Door Width: 950 mm
- Power Grade: EN3 (EN 1154 certified for smooth, controlled closing)
✅ Space-Saving Design
- Compact Dimensions: 236 mm (L) × 60 mm (W) × 38.5 mm (H)
- Minimal Footprint: 50 mm × 50 mm × 43 mm
- Rail guide system for easy installation and low-profile aesthetics.
✅ Durable & Customizable
- Finish Options: Pantone-matched paint colors, SSS/SNP arm, PA bracket, and cover.
- Corrosion-resistant materials for long-term performance.
Technical Specifications
| Parameter | Detail |
| Dimensions | 236 × 60 × 38.5 mm (L×W×H) |
| Footprint | 50 × 50 × 43 mm |
| Door Weight | 40–65 kg |
| Door Width | ≤950 mm |
| Certifications | EN 1154, CE, ISO 9001 |
| Warranty | 5-year warranty |
Why Choose OUDE?
✔️ Trusted Manufacturer – Over 20 years of expertise in door hardware engineering.
✔️ Global Compliance – Meets international safety and quality standards.
✔️ Custom Solutions – Tailor finishes and components to match your project’s needs.
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover

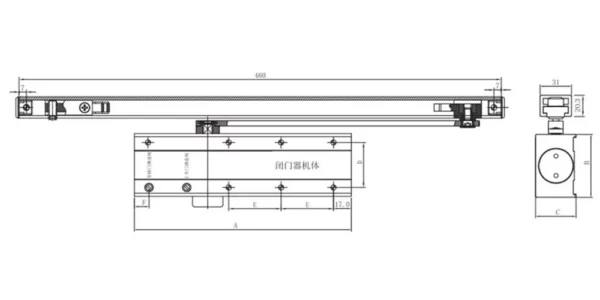

| Main parameter | ||||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door weight(Kg) | Applicable door width(mm) | Function | Please install according to the instruction | ||||
| A | B | C | D | E | F | |||||
| 1143AWH | 236 | 60 | 38.5 | 43 | 50 | 14 | 40～65 | ≤950 | Two-stage speed regulation | Slide rail installation with door stop function |
| 1133AWH | 207 | 60 | 38.5 | 43 | 50 | 14 | 40～65 | ≤950 | Two-stage speed regulation | |
