Description

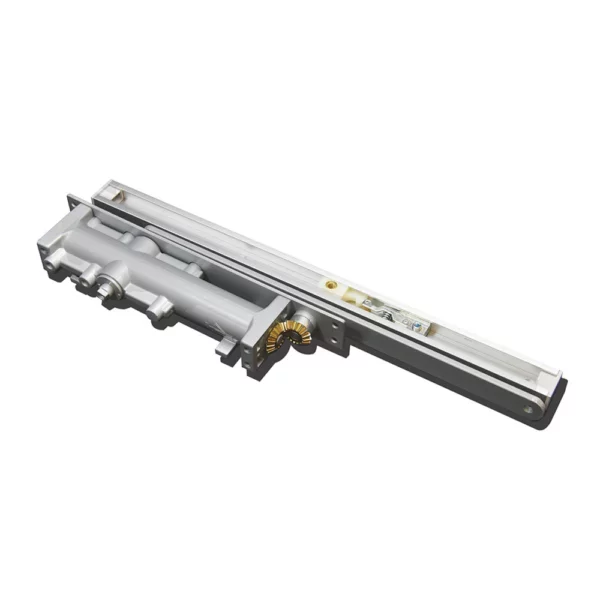

202-5BWH Concealed Closer
Size:230MM（L）×61MM（H）×37MM(W)
Install size:284MM×20MM
Power:En2#~En5# adj by spring
Door Weight:25-100KG
Door Width:≤1200MM
Backcheck optional
UL certified 3hrs R26448
Body material of the concealed closer:alluminum diacasted
|
Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|

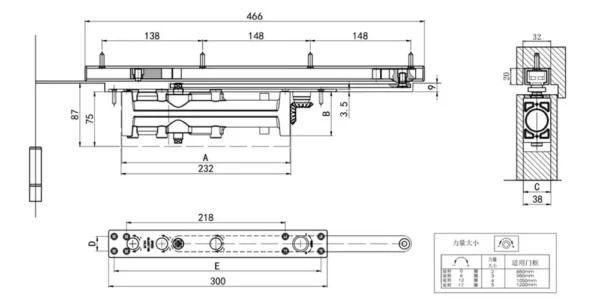

Please install according
to the |
|||
| A | B | C | D | E | |||||
|
202-5BWH |
230 |
61 |
37 |
20 |
284 |
20~100 |
≤1200 |
Adjustable closing and locking force/buffer function | With slide rail rocker arm and door stop function |
