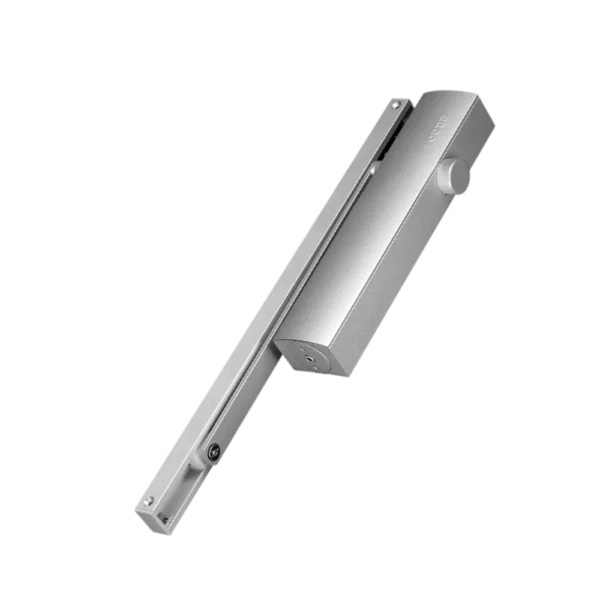

Description
Size：226MM（L）×43MM（H）×60MM(W)
Footprint:44MM×135MM×25MM
Power:En2#~En5#
Door Weight:25-100KG
Door Width:900MM~1200MM
Function:Backcheck/Delay action
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover
|

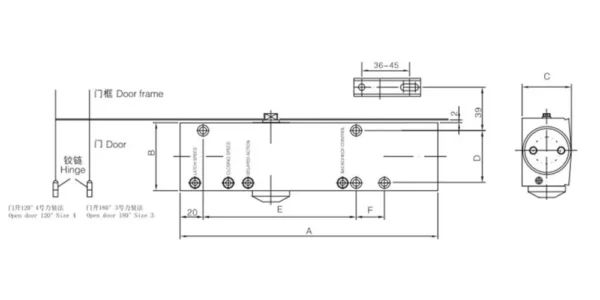

Main parameter |
||||||||||
| Item |
Overall dimension
（mm） |
Installation dimension
（mm） |
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
||||
| A | B | C | D | E | F | |||||
| 812-5CWH | 226 | 60 | 43.5 | 44 | 135 | 25 | 25~120 | ≤1200 | Dual-stage speed regulation/buffer, delay, adjustable intensity function | Equipped with slide rail rocker arm and door stop function |
