Description

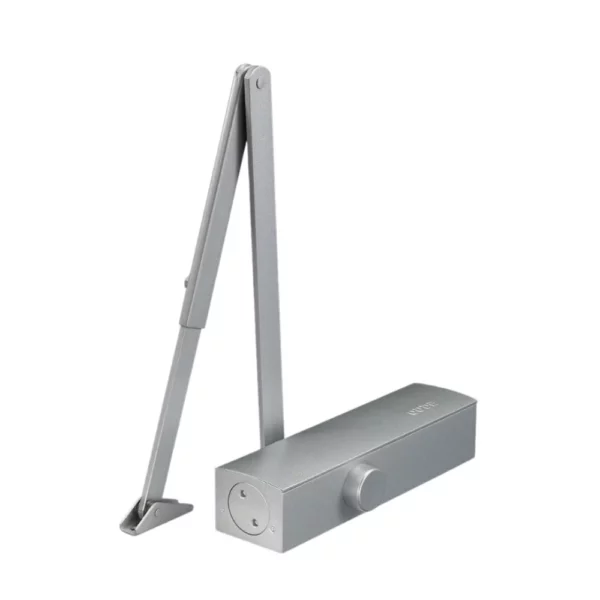

8025AW
Size：226MM（L）×48MM（H）×60MM(W)
Footprint:44MM×135MM×25MM
Power:En2#/En4#/En5# Drop plate
Door Weight:25-100KG
Door Width:900MM~1200MM
| Main parameter | ||||||||||
| Item |
Overall dimension
（mm） |

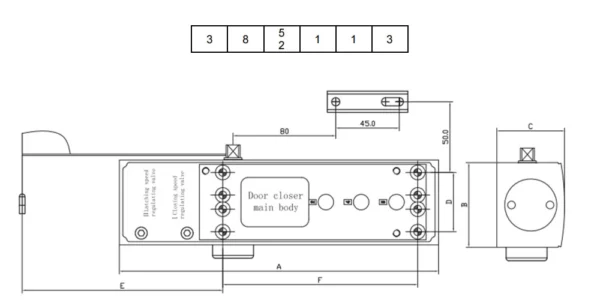

Installation dimension
（mm） |
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
||||
| A | B | C | D | E | F | |||||
| 8025AW | 226 | 60 | 48 | 25~120 | ≤1200 | Closing/latching speed adjustable(EN3/4/5 by template) |
||||
