Description

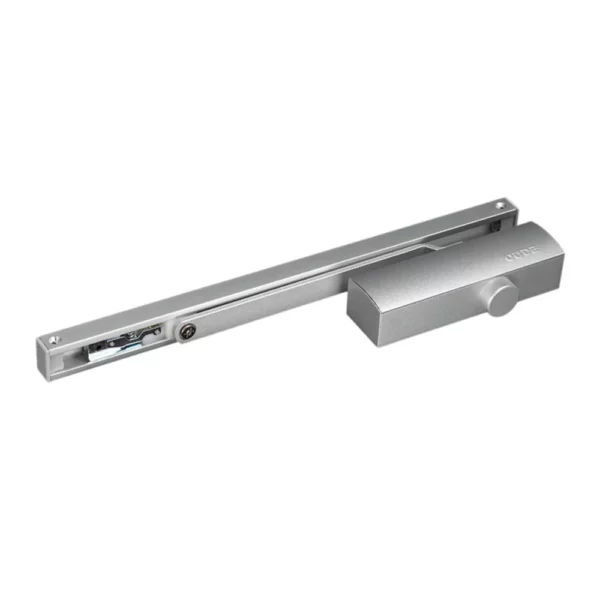

8023AWH
Size：178MM（L）×38MM（H）×50MM(W)
Footprint:38MM×86MM×60MM
Power:En3#
Door Weight:40-65KG
Door Width:950MM
Backcheck optional

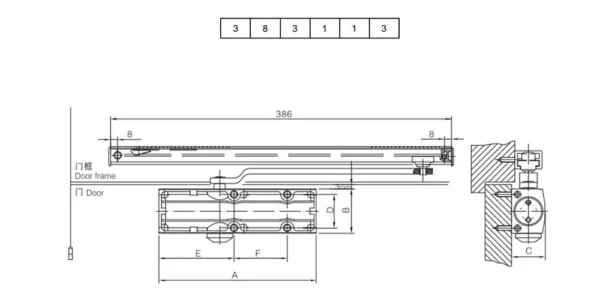

| Main parameter | ||||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable doorweight(Kg) | Applicable doorwidth(mm) | Function | Please install accordingto the
instruction |
||||
| A | B | C | D | E | F | |||||
| 8023AWH | 178 | 50 | 38 | 38 | 86 | 60 | 40-65 | ≤950 | Two-stage speed regulation | Equipped with slide rail rocker arm and door stop function |
