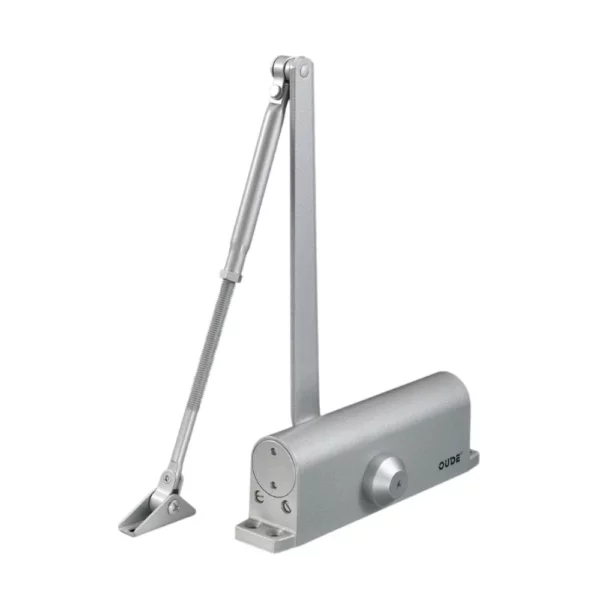

Description
Size：226MM（L）×72MM（H）×44.5MM(W)
Footprint：208MM×19MM
Power:En4#
Door Weight:60KG~85KG
Door Width:≤1050MM
|

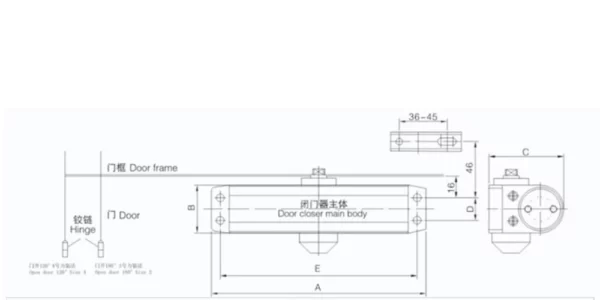

Main parameter |
|||||||||
| Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 7044AW | 226 | 44.5 | 72 | 19 | 208 | 60~85 | ≤1050 |
Latching/closing adjustable
|
|
| 7044BW | 226 | 44.5 | 72 | 19 | 208 | 60~85 | ≤1050 |
Latching/closing
adjustable Backcheck adjustable |
|
