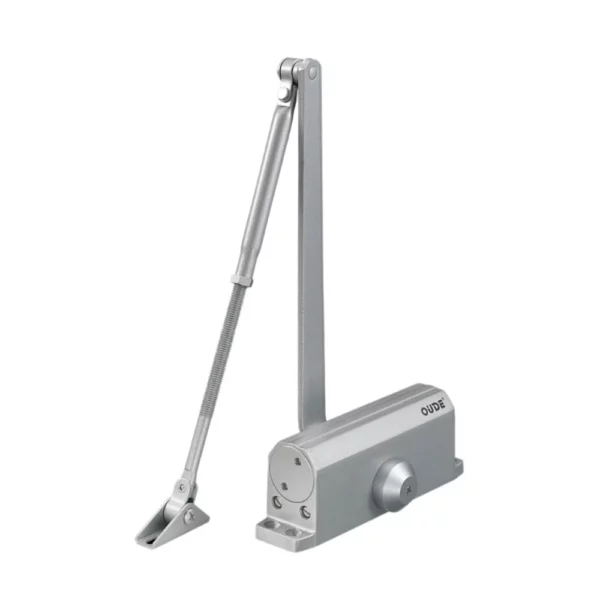

Description
Size:168MM（L）×63MM（H）×41.5MM(W)
Footprint:152MM×19MM
Power:En3#
Door Weight:40-65KG
Door Width:≤950MM
|

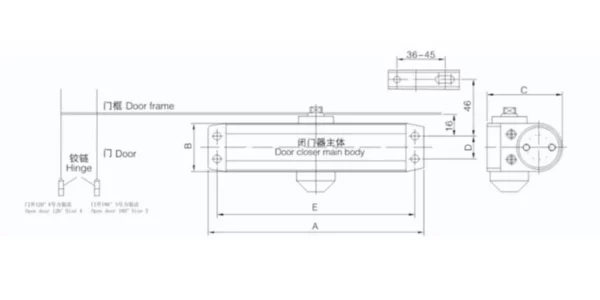

Main parameter |
|||||||||
| Item |
Overall dimension
（mm） |
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according
to the instruction |
|||
| A | B | C | D | E | |||||
| 6023AW | 168 | 41.5 | 63 | 19 | 152 | 40~65 | ≤950 |
Latching/closing adjustable
|
|
| 6023AD | 168 | 41.5 | 63 | 19 | 152 | 40~65 | ≤950 |
Latching/closing adjustable
Hold open |
|
